1.5M Singlemode SC/APC UPC 2.0mm Simplex Fiber Optic Pigtail

Product Categories
Shenzhen CY COM Product Co., Ltd.
Contact Now

1.5M Singlemode SC/APC UPC 2.0mm Simplex Fiber Optic Pigtail

  • 1
  • 2

Brand Name : CY COM

Model Number : SC LC FC

Certification : RoHS,ISO9001

Place of Origin : Shenzhen China

MOQ : 10PCS

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 30000pcs per day

Delivery Time : 3-5 working days

Packaging Details : PE bag or plastic box and Carton box

Length : 1m or customized

Cable color : Colors

Connector : SC,FC,LC

Ferrule End-face : UPC

Cable diameter : 0.9mm/2.0mm/3.0mm

Return loss : >50dB

Fiber Count : 4/6/8/12 Fibers

Contact Now

1.5M Singlemode SC/APC UPC 2.0mm Simplex Fiber Optic Pigtail



2.0mm 3.0mm Simplex Fiber Optic Pigtail 1.5M SC Pigtail Singlemode Fiber SC/APC UPC Pigtail


Description:
Fiber Optic Pigtail is important of optical network.they have same or different connectors which are installed on the end of fiber optic cable. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.

Features:

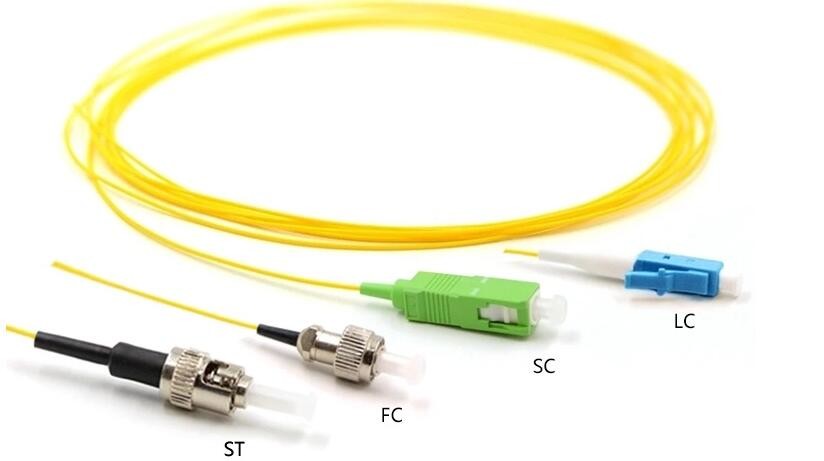

1. SC, LC, FC, MU, ST, MT-RJ, E2000 connector available;
2. Superior qualified standard PC, APC, UPC, SPC polishing;
3. φ0.9mm, φ2.0mm, φ3.0mm cable optional;
4. Single mode (9125) or multi mode (50/125 or 62.5/125) fiber available;
5. Available in fiber bunch, ribbon fan-out, pigtail available;
6. Simplex and duplex connector available;
7. Low IL and High RL;
8. Good exchange ability and good durability;
8. Customized specifications are welcomed.

Application:
Telecommunication
Computer networks
CATV networks Active device termination
Instrumentation




Performance Index

Item SM(Single Mode) MM(Multimode)
Fiber Cable Type G652D/G655/G657A1/G657A2 OM1 OM2/OM3/OM4
Fiber Diameter (um) 9/125 62.5/125 50/125
Cable OD (mm) 0.9/1.6/1.8/2.0/2.4/3.0
Endface Type PC UPC APC UPC UPC
Typical Insertion Loss (dB) <0.2 <0.15 <0.2 <0.1 <0.1
Return Loss (dB) >45 >50 >60 /
Insert-pull Test (dB) <0.2 <0.3 <0.15
Interchangeability (dB) <0.1 <0.15 <0.1
Anti-tensile Force (N) >70
Temperature Range (℃) -40~+80


1.5M Singlemode SC/APC UPC 2.0mm Simplex Fiber Optic Pigtail

1.5M Singlemode SC/APC UPC 2.0mm Simplex Fiber Optic Pigtail
